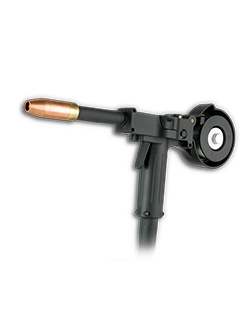

Sidewinder MiniSpool Gun

Sidewinder® MiniSpool™ Gun

Models: 322-515, 322-525 (7" barrel - PN: 003-2251)
Lengths: 15 ft and 25 ft lengths (4.6 m and 7.6 m)

Price: Sidewinder MiniSpool Gun - Standard 25 ft

Description

Size actually does matter, especially when you’re welding in a tight and confined location such as auto body repair. Select the Sidewinder for ultra compact size and profile for limited access or confined welding areas. If reach is an important feature for special applications such as channel letter welding in the aluminum sign industry, the Sidewinder has a 7” barrel length for extended reach into deep channels with steep sidewalls and where other mechanical interference exists around the desired weld zone.

How to Buy

FEATURES

Intended for applications with limited access, weight requirements or the need for a small footprint.
Extended reach 7” barrel for getting down into the deepest narrow channel letters.
Combine with SP control modules to connect to small inverters or portable engine-driven power sources.
Uses 1/4” consumables.
Wire feed speed 600 IPM

Wire Type and Diameter:
Aluminum wire: .030” - .035” (0.8 mm - 0.9 mm)
(MiniSpool™ 1/4 lb welding wire is required for use with this gun)

Duty Cycle 100%

Rated Output

Rated Output determined by the gun having an Air Cooled (A/C) barrel.

Sidewinder MiniSpool Gun A/C is 135 Amps

Part Numbers

Length	Part Number	Length	Part Number
15ft AC:	322-515	25ft AC:	322-525

Owners Manuals - References

Owners MANUAL	CATALOG Page	SALES Sheet	Product IMAGE

Consumables

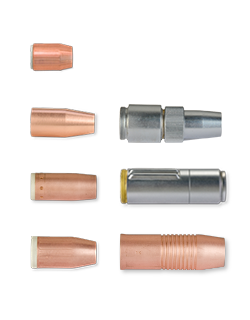

Gas Cups

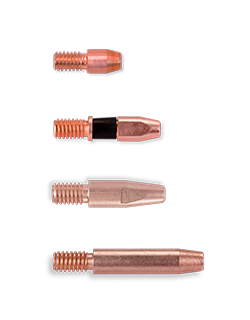

Contact Tips

Barrel Liners: Aluminum

Teflon
931-0140 (Sidewinder)

Barrel Liners: Hard Wire Spiral Steel Liner
615-0343
615-0258
615-0259

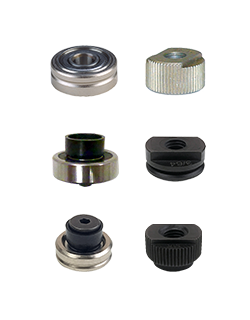

Drive Rolls

Additional Enhancements For Aluminum Capabilities

Drive Roll Kits:

Knurled (Standard)
Insulated Grooved (Option)
Insulated Knurled (Option)

Drive roll installation / removal tool (931-0100)

For P/Ns Read More

Contact Tips for Hard Wire

Steel, Stainless and
Flux Core Steel wire

1/4” Contact Tips
SX SG SW MXclass

.023”(0.6 mm) 621-0328-25
.030”(0.8 mm) 621-0326-25
.040”(1.0 mm) 621-0077-25
.045”(1.1 mm) 621-0002-25

Length	Gas Hose	Control Cable	Power Cable
15 ft (4.6 m) 25 ft (7.6 m)	552-0201 552-0202	843-0555 843-0556	843-0590 843-0591

Spool Gun Wire and Adapters

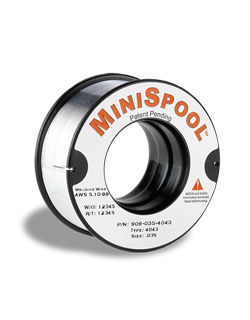

MiniSpool™ Wire
The 1/4 lb MiniSpool™ is available in .030” and .035” wire size diameters in aluminum alloy.
(P/Ns below)
Each MiniSpool™ can hold over 300 ft of aluminum welding wire.
MiniSpool™ is available by the case (54)
for even greater savings.
Contact factory for details.

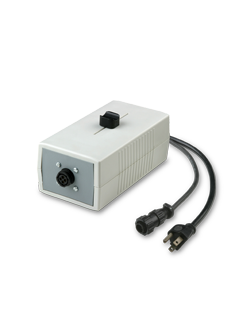

Spool Gun Adapterrs:
The Sidewinder® requires 12VDC to power the gun motor.
Below are several adapters that provide DC power and connect to most power supplies available in the industry. (P/Ns below)
Two of these require input power of 115VAC while the other two controls receive power from the power source.

MiniSpool™ Wire - Part Numbers

Wire Size	Wire Size	Alloy	Part Numbers
.030” .035” .035”	0.8 mm 0.9 mm 0.9 mm	ER4043 ER4043 ER5356	909-030-4043 909-035-4043 909-035-5356

Spool Gun Adapters - Part Numbers

Decsription	Decsription	VAC	Part Numbers
SP-1 SP-L1 SP-M1 SP-4A	All Source 14-C/D Trigger 14-A/B Trigger 4-1/2 Trigger	115 42 24 115	005-0355 005-0356 005-0357 005-0358
