Python MIG Welding Gun

Python® - Advanced Gooseneck


  • Models:             Air Cooled: (P/Ns below)
  • Models:             Water Cooled: (P/Ns below)
  • Models:             Compatible: MK, Lincoln, Miller, Fronius, ESAB and Euro (P/Ns below)
  • Lengths:           15 ft, 25 ft, 35 ft and 50 ft lengths

Description

Power and Performance is the best way to describe a gun so advanced that even the competition is on edge. Taking a lesson from both the Cobra® gooseneck and the Prince® XL, the Python adds its own unique set of features with time proven design to bring together the most advanced welding gun available.

Compatibility:

Direct plug-in connectors available for Lincoln, Miller, Fronius, ESAB and Euro wire feeders. Water and Air Cooled models: 15 ft, 25 ft, 35 ft and 50 ft lengths. (P/Ns below)

FEATURES

  • Convenient “forward trigger” location
  • “Fingertip” wire speed adjustment
  • EZ-Lock® barrel can easily rotate 360˚ to provide the perfect angle for all jobs
  • Available in both Water and Air Cooled models
  • Provides hours of high speed continuous wire feed without welder fatigue
  • For aluminum, stainless, steel and flux cored wires
  • Wire feed speed 800 IPM
Duty Cycle 100%
Rated Output
Rated Output

Rated Output determined by the gun having an Air Cooled (A/C) or Water Cooled (W/C) barrel.

Python A/C is 225 Amps
Python W/C is 400 Amps

Options / Compatibility

  • Optional Ultra Flex power cable offers more durability and less strain when welding. (Part Numbers below)
  • Air Cooled models can use the Flex Barrel for hard to reach welds
  • Capable of Aluminum Welding as well as Hard Wire Welding (Steel, stainless steel and flux core steel wires)

  • Plug-in direct compatibility with MK, Lincoln, Miller, Fronius, ESAB and Euro systems. (Part Numbers below)
  • Available in both Water Cooled and Air Cooled models
  • Available in Lengths: 15 ft, 25 ft, 35 ft and 50 ft

Part Numbers - MK and Compatible Guns

Compatible guns used with Lincoln Power Feed 25M (model K2536-4) require a kit for adaptability. Call factory for details.

Part Numbers
MK
Part Numbers
Lincoln 7 Pin
Part Numbers
Miller 14 Pin
Part Numbers
Fronius 9 Pin
Part Numbers
Euro 7 Pin
15ft AC:   234-815
25ft AC:   234-825
35ft AC:   234-835
50ft AC:   234-850

15ft WC:   235-815
25ft WC:   235-825
35ft WC:   235-835
50ft WC:   235-850
232-815
232-825
232-835
232-850

293-815
293-825
293-835
293-850
291-815
291-825
291-835
291-850

292-815
292-825
292-835
292-150
289-815
289-825
289-835
289-850

290-815
290-825
290-835
290-150
296-815
296-825
296-835
296-850

297-815
297-825
297-835
297-150

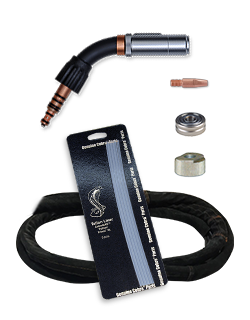

Consumables Overview

  • Snake Skin (Standard)
  • 931-0110 15ft
  • 931-0122 25ft
  • 931-0132 35ft
  • 931-0123 50ft

  • Consumables
  • Barrels and Gas Cups
  • Contact Tips
  • Tip extenders
    (P/Ns below)
Air Cooled / Water Cooled
Air Cooled and Water Cooled Consumables
  • More Consumables
  • Barrel Liners
  • Drive rolls
  • Tips for Hard Wire
  • Wire Type and Diameter
    (P/Ns below)


Consumables
More Consumables

Consumables - Cups and Tips Connectivity

Extend Your Reach and Save Barrel Tip Threads

Not only can tip extenders extend the reach of your gun, but they also protect the threaded end of your barrel from damage. Some extenders are stackable and some are not – see below to determine. View Connectivity Guide for Water Cooled configuration.

Barrel Tip Extender Adapter Contact Tip Gas Cup
Barrels
Barrels
Python/LX/Prince XL
AC & A/W
Tip Extenders
P/N 621-0424
NON stackable
Adapters
Not Applicable
Contact Tips
3/8 inch diameter

Gas Cups

Finned Copper A/C

More Consumables

Barrel Liners: Aluminum
Teflon
931-0137

Barrel Liners: Hard Wire Spiral Steel Liner
615-0343
615-0258
615-0259
615-0338 (Python only)

Hard Wire - Flex Barrel Spiral Steel Liner
(Python, Python LX)
615-0261-12, 615-0261-18
615-0261-24, 615-0261-36

Read More

wire
Wire Type and Diameter

Solid and Hard wire
.030” - .045”
(0.8 mm - 1.1 mm)


Aluminum and
Cored wire

.030” - 1/16”
(0.8 mm - 1.6 mm)

Drive Rolls

Additional Enhancements For Aluminum Capabilities

Drive Roll Kits:

  • Knurled (Standard)
  • Insulated Grooved (Opt)
  • Insulated Knurled (Opt)

  • Drive roll installation / removal tool (931-0100)

For P/Ns Read More

Contact Tips for Hard Wire

Steel, Stainless and
Flux Core Steel wire


3/8” Contact Tips
Python LX XL MAX MXmax

.030”(0.8 mm) 621-0396-25
.035”(0.9 mm) 621-0397-25
.045”(1.1 mm) 621-0398-25

Read More

Gun Lead Assembly Components - MK AND COMPATIBLE GUNS

U.S. Customary Units / Metric: 15 ft/4.6m, 25 ft/7.6m, 35 ft/10.7m, 50 ft/15.2m

Hoses

MK Lincoln Miller Fronius Euro
MK Classic Connections to wire feeder

Gas Hose

552-0242-15
552-0242-25
552-0242-35
552-0242-50

Water Hose MK

552-0243-15
552-0243-25
552-0243-35
552-0243-50

---

---
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0238-15
552-0238-25
552-0238-35
552-0238-50

Water Hose Red

552-0211 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths

Cables

MK Lincoln Miller Fronius Euro

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0630-15
843-0630-25
843-0630-35
843-0630-50

Power Cable (WC)

005-0387-15
005-0387-25
005-0387-35
005-0387-50

Power Cable
Ultra Flex (AC only)

843-0580-15
843-0580-25
843-0580-35
843-0580-50

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0380-15
005-0380-25
005-0380-35
005-0380-50

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0381-15
005-0381-25
005-0381-35
005-0381-50

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Conduits

MK Lincoln Miller Fronius Euro

Aluminum Welding Only
- Conduit

615-0601-15
615-0601-25
615-0601-35
615-0601-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0208
615-0216
615-0219
615-0218

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Water Cooled Connections - Interchangeable Fittings for Compatible Guns

Fittings: For Water Cooled Connections: MK compatible guns have interchangeable fittings, so you can match as needed for your cooler.

Hose Retainer: Both fittings require a hose retainer. Call factory for pricing.

Retainer Part Number Fitting Part Number Fitting Part Number
Hose Retainer 431-1898 431-1898
5/16” Hose Retainer
Quick Connect Fitting 431-1910 431-1910
Quick Connect
Fitting
753-3379 Fitting with Nipple 431-1893 431-1893* Nipple
753-3379* Left-Hand
Threaded Fitting
*Must be ordered together
Both Fittings with Retainer Both fittings shown with a hose retainer Cobra Coolant For Water Cooled Guns.

For best performance use only Cobra Coolant.

Cobra® Coolant

Failure to use Cobra Coolant will void warranty.

Cobra Coolant

931-0060: 1 Gal (3.78 L)
931-0060-4: 1 Case-qty 4
931-0060-5GAL: 18.92L

Owners Manuals - MK and Compatible Guns

Click on images of each Manual to open PDF.

MANUAL MK MANUAL Lincoln 7 Pin MANUAL Miller 14 Pin MANUAL Fronius 9 Pin MANUAL Euro 7 Pin
