Aircrafter T-25 Rotary Turntable

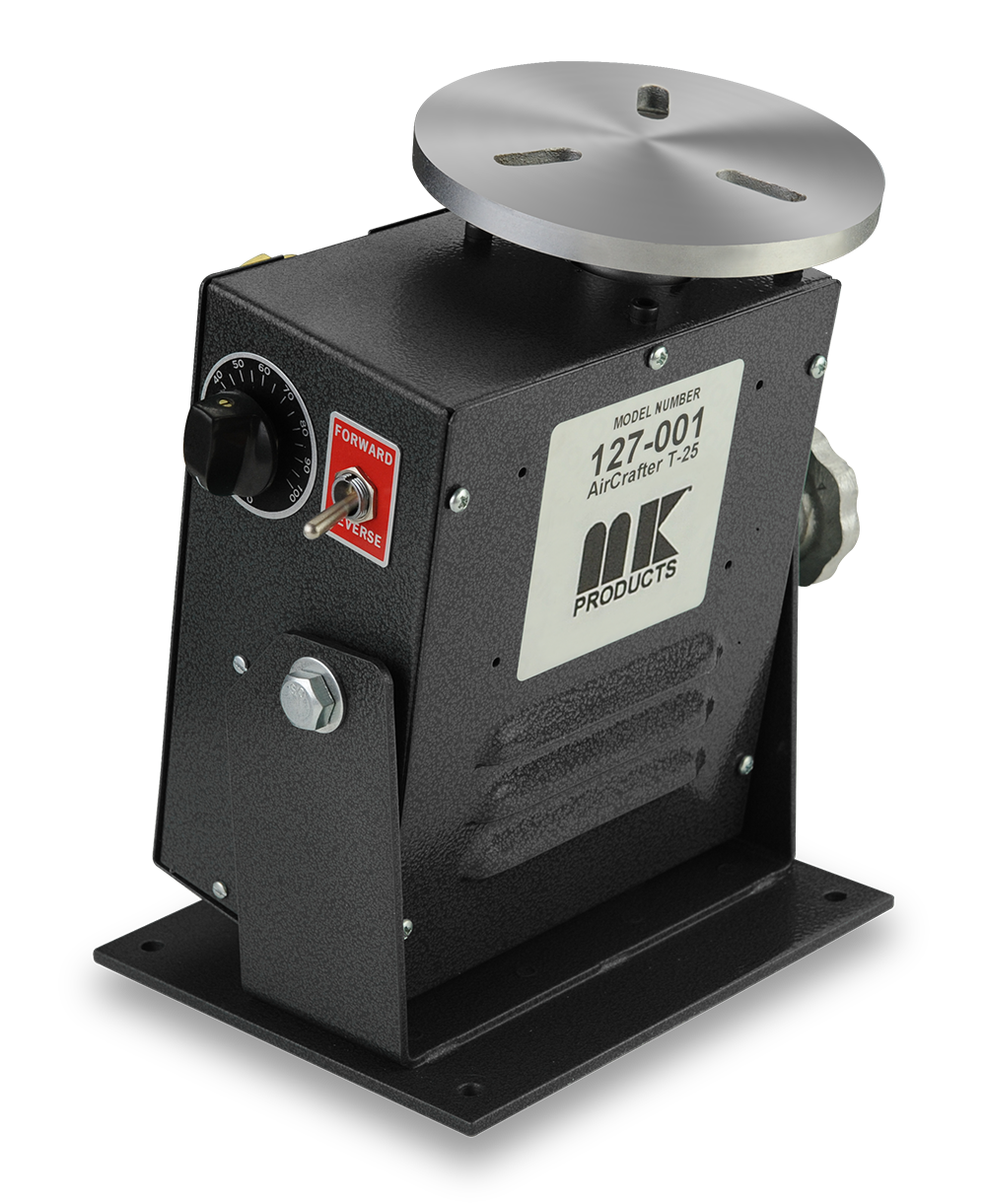

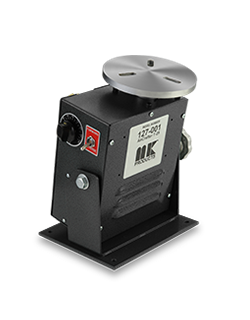

Aircrafter™ T-25 - Rotary Turntable


  • Model:            127-001

Price: $995.90 Aircrafter T-25 - Rotary Turntable


Description

The AirCrafter™ T-25 positioner is ideal for lightweight applications. The most affordable rotary turntable, the T-25 is well suited for welding small, intricate assemblies, tube flanges and small aircraft-type parts as well as rotating lightweight non-welding items. The compact T-25 positioner has a maximum center load capacity of 25 lbs. and maximum welding ground capacity of 170 amps.

Features

  • Compact high performance turntable.
  • Comes with 5” turntable top.
  • Table angle control from 0 to 90°.
  • Appropriate for GMAW or GTAW welding processes.
  • High frequency protected.
  • Perfect for small jobs.
  • Includes a variable speed foot control.
  • The AirCrafter™ has a long standing reputation for fine workmanship and durability. It’s no wonder that the AirCrafter™ name is one of the most asked for brands in the welding industry. MK Products makes every turntable to exacting standards.

Specifications

Model Number Table Diameter Offset Load Capacity -
Horizontal - 0°
Offset Load Capacity -
Vertical - 90°
127-001 5” 16 lb with Center of Gravity
1.78” off center
10 lb with Center of Gravity
2.5” from plate
Table Tilt R.P.M. Range Balanced Load
Capacity - Horizontal
Balanced Load
Capacity - Vertical
0 ~ 90° 0.5 ~ 10 25 lb 10 lb

Owners Manuals - References

Owners MANUAL CATALOG Page SALES Sheet Product IMAGE

Accessories

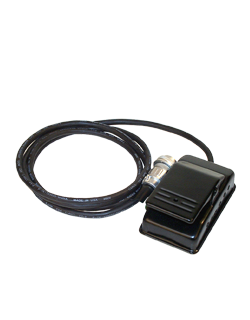

Aircrafter T-25 Rotary Turntable variable speed foot control
The AirCrafter™ T-25 comes with:

a variable speed foot control.
