Prince® XL - Gun to Wire Feeder / MIG Welder Connectivity
All Cobramatic® and Cobramatic compatible guns are available in lengths of 15 ft, 25 ft, 35 ft and 50 ft.
Gun Lead Connections - Available for different Wire Feeders/MIG Welders.
Lincoln Compatible guns used with Lincoln Power Feed 25M (model K2536-4) require a kit for adaptability. Call factory for details.
| Gun Connections | Connectors Air Cooled |
Length / Model Air Cooled |
Connectors Water Cooled |
Length / Model Water Cooled |
 |
 |
MK Cobramatic 15 ft (4.6 m) 317-815 25 ft (7.6 m) 317-825 35 ft (10.7 m) 317-835 50 ft (15.2 m) 317-850 |
 |
MK Cobramatic 15 ft (4.6 m) 318-815 25 ft (7.6 m) 318-825 35 ft (10.7 m) 318-835 50 ft (15.2 m) 318-850 |
|
 |
Lincoln, 7 Pin 15 ft (4.6 m) 310-815 25 ft (7.6 m) 310-825 35 ft (10.7 m) 310-835 50 ft (15.2 m) 310-850 |
 |
Lincoln, 7 Pin 15 ft (4.6 m) 311-815 25 ft (7.6 m) 311-825 35 ft (10.7 m) 311-835 50 ft (15.2 m) 311-850 |
|
 |
Miller, 10 Pin 15 ft (4.6 m) 332-815 25 ft (7.6 m) 332-825 35 ft (10.7 m) 332-835 50 ft (15.2 m) 332-850 |
 |
Miller, 10 Pin 15 ft (4.6 m) 333-815 25 ft (7.6 m) 333-825 35 ft (10.7 m) 333-835 50 ft (15.2 m) 333-850 |
|
 |
Fronius, 9 Pin 15 ft (4.6 m) 330-815 25 ft (7.6 m) 330-825 35 ft (10.7 m) 330-835 50 ft (15.2 m) 330-850 |
 |
Fronius, 9 Pin 15 ft (4.6 m) 331-815 25 ft (7.6 m) 331-825 35 ft (10.7 m) 331-835 50 ft (15.2 m) 331-850 |
Fittings and Hose Retainer
Fittings: For Water Cooled Connections: MK Products compatible guns have
interchangeable fittings, so you can match as needed for your cooler.
Hose Retainer: Both fittings require a hose retainer. Call factory for pricing.
| Retainer | Part Number | Fitting | Part Number | Fitting | Part Number |
 |

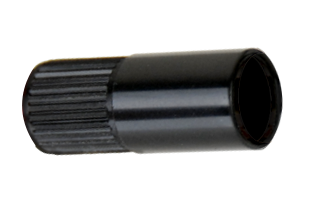

431-1898 5/16” Hose Retainer |
 |
431-1910 Quick Connect Fitting |
 |

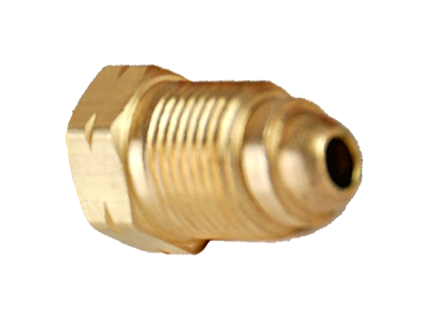

431-1893* Nipple
753-3379* Left-Hand Threaded Fitting *Must be ordered together |
 |

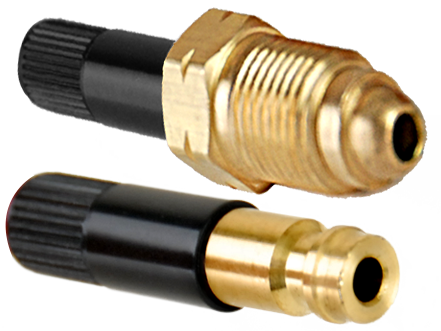

Both fittings shown with a hose retainer | ||||
