CobraTurn® T-30

CobraTurn® T-30


  • Model:            125-001

Price: $1395 CobraTurn® T-30


Description

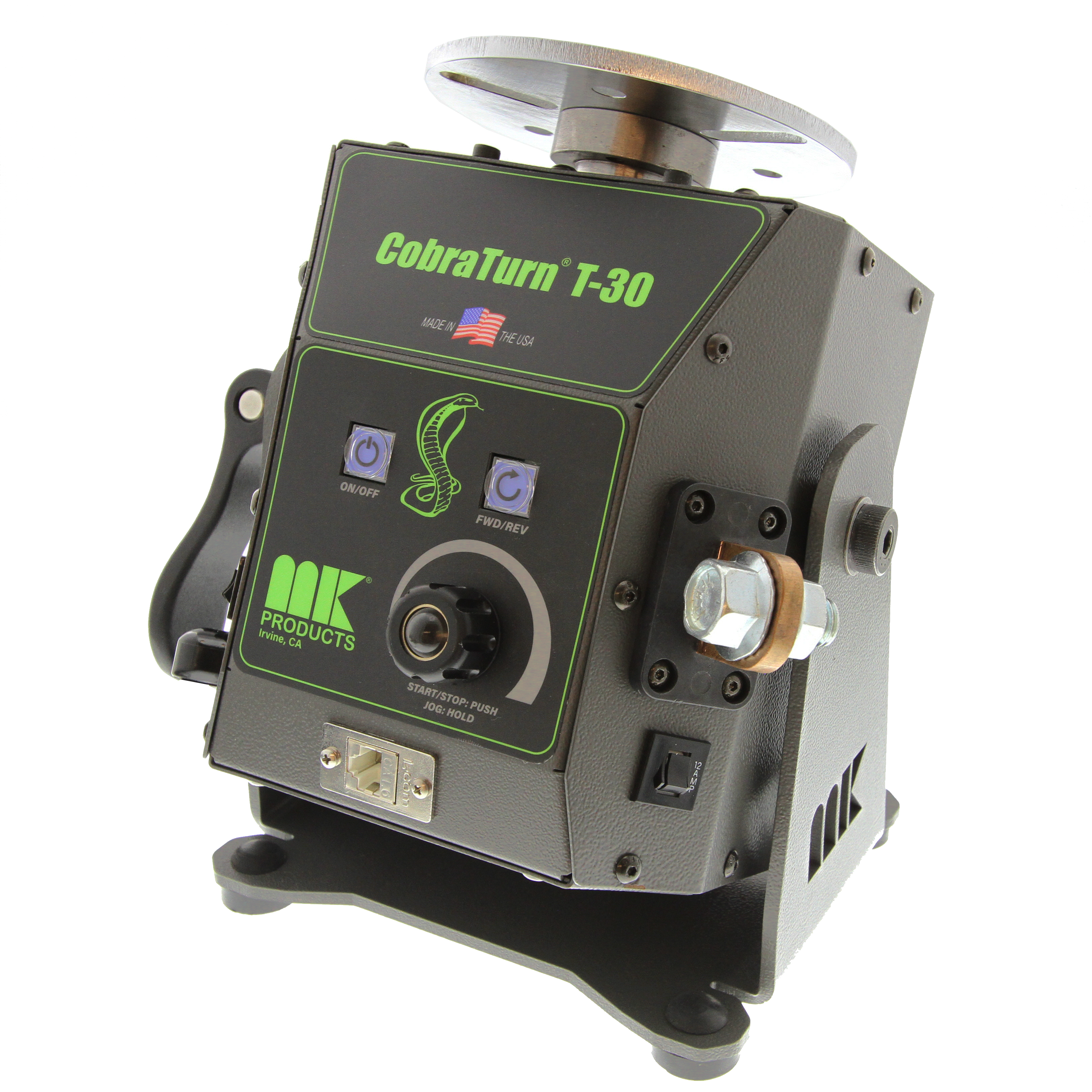

The CobraTurn® T-30 turntable is ideal for lightweight applications. The most affordable rotary turntable, the T-30 is well suited for welding small, intricate assemblies, tube flanges and small aircraft-type parts as well as rotating lightweight non-welding items. The compact T-30 turntable has a maximum center load capacity of 30 lbs. and maximum welding ground capacity of 400 amps.

Features

  • Compact high performance turntable.
  • Comes with 5” tabletop.
  • Weld ground fault protection.
  • Adjustable LED illuminated control panel.
  • Linear single speed control knob with center push-button start, stop and jog functions .
  • Cam lever to lock table angle.
  • High frequency interference protection.
  • Appropriate for all welding applications.
  • On/off foot switch included.

Specifications

Model Number Table Diameter Offset Load Capacity -
Horizontal - 0°
Offset Load Capacity -
Vertical - 90°
125-001 5” 30 lb 17 lb
Table Tilt R.P.M. Range Balanced Load
Capacity - Horizontal
Balanced Load
Capacity - Vertical
0 ~ 90° 0.4-6 30 lb 15 lb

Owners Manuals - References

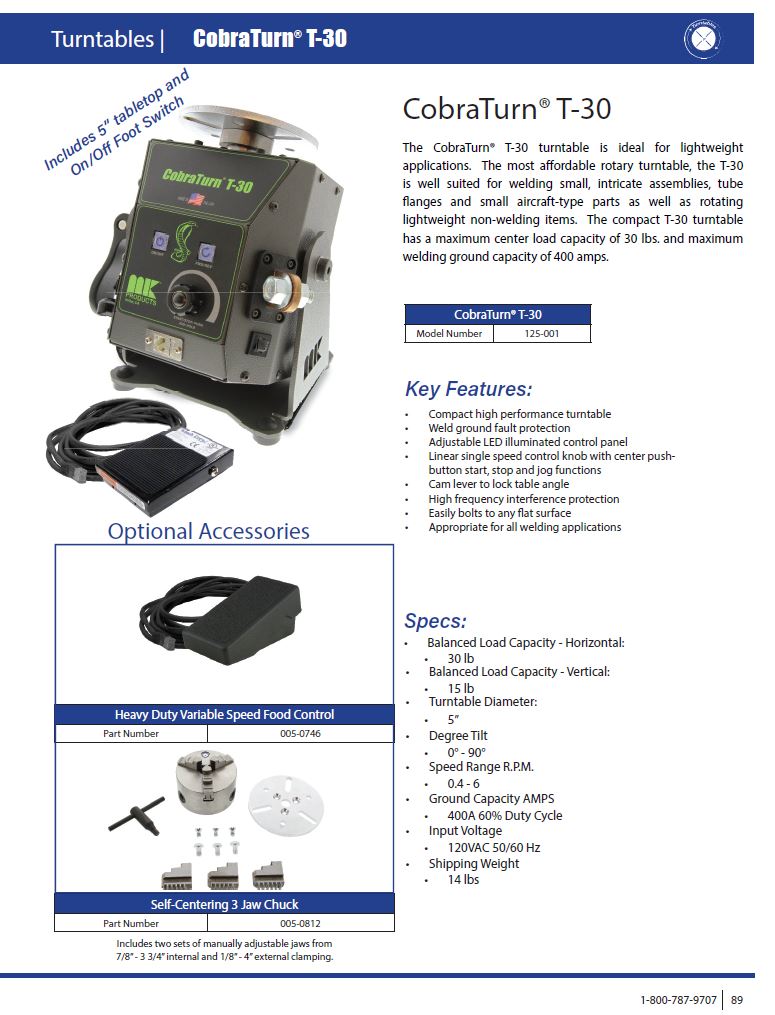

CATALOG Page Product IMAGE

Accessories

Included
ON/OFF Foot Swith
005-0747 CobraTurn Turn Table On/Off Foot Switch 005-0747
Optional
Variable Speed Foot Pedal
005-0746 CobraTurn Turn Table On/Off Foot Switch 005-0747
Optional
3 Jaw Chuck
005-0812 CobraTurn Turn Table On/Off Foot Switch 005-0747
