Drive Roll Kits
Knurled Drive Roll Kits - Standard factory installed
Our knurled drive rolls are designed to allow the wire to have more surface area contact. This extra contact means more grip and traction.
Kit P/N 005-0686
Includes washer and screw |
P/N 511-0101
|
Both items are standard factory installed
|
Insulated Grooved Drive Roll Kits - Optional
The Insulated Grooved Drive Kits are designed to fit all models of MK welding guns. Insulated Grooved Drive Rolls are used to prevent preheating of the wire which may soften and clog the liner. The picking up of current at the drive rolls (rather than at the contact tip) is usually not a problem unless using too large of a contact tip or welding with excessively oxidized aluminum wire.
Included in the kit
|
Included in the kit
|
Insulated Grooved Drive Roll Kits
Wire size | Kit Part No.
|
Insulated Knurled Drive Roll Kits - Optional
Our Insulated Knurled Drive Rolls are designed to allow the wire to have more surface area contact. The picking up of current at the drive rolls (rather than at the contact tip) is usually not a problem unless using too large of a contact tip or welding with excessively oxidized aluminum wire.
Included in the kit
|
Included in the kit
|
Insulated Knurled Drive Roll Kits
|

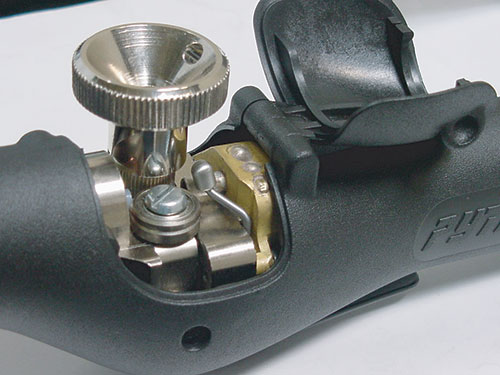

Drive Roll Removal Tool
Also available: |
P/N 931-0100
|
|
Catalog Page for Drive Roll Kits: Here
