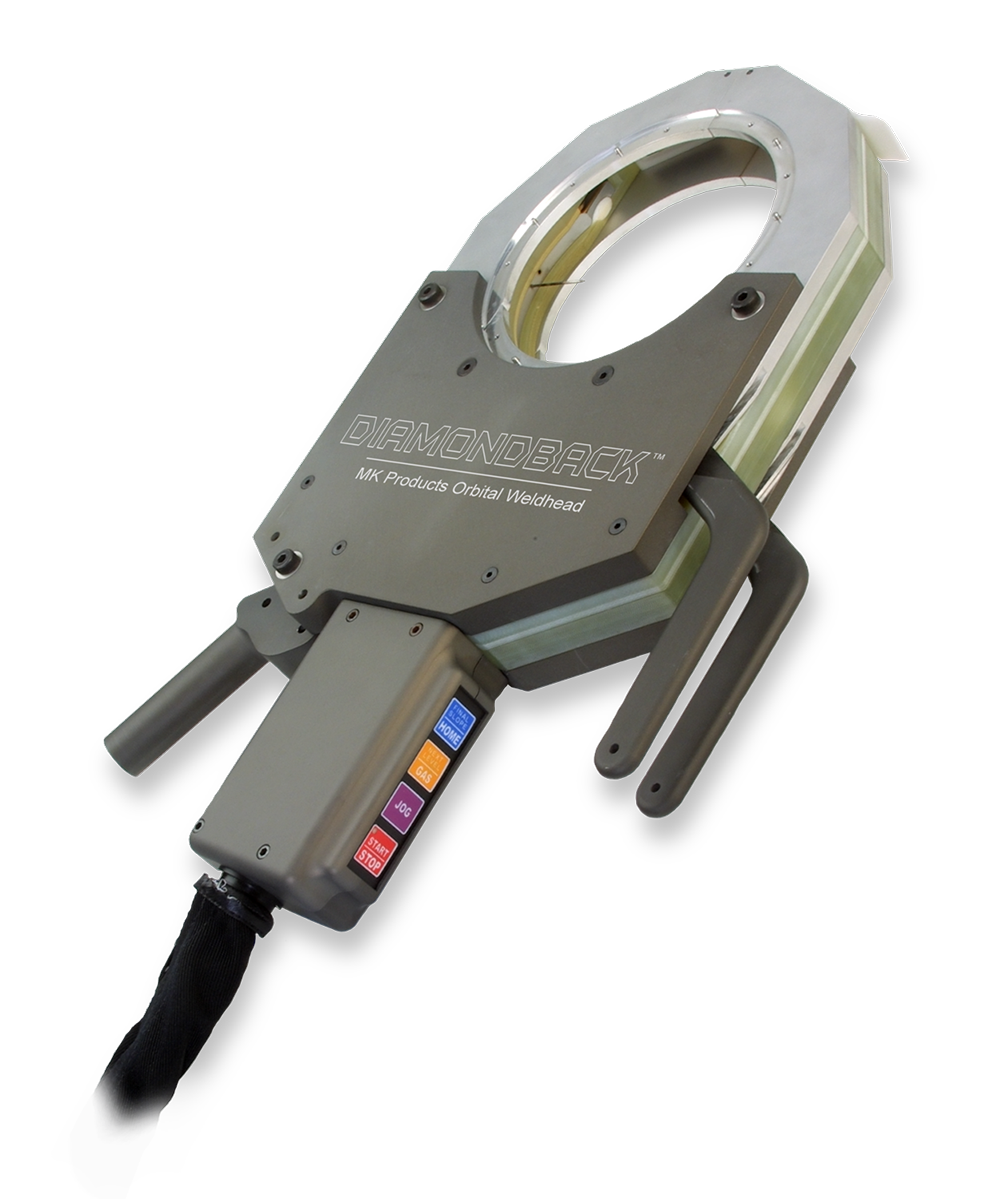

DiamondBack™ GTAW Weldheads

  • Model:            5006    DiamondBack  (2” O.D. ~ 6” O.D.)   Cooling Requirements: No

Price: Call for Quote DiamondBack GTAW Weldhead


The DiamondBack™ is our largest in-place orbital weldhead. Heavy duty and versatile, the DiamondBack™ has a narrow profile and is perfect for process piping and weld fitting applications found in food & beverage, dairy and other sanitary process piping installations. Also great for highpressure aerospace applications, this easy to use weldhead is simple yet robust to meet the demands of field construction or manufacturing production environments.


  • Weldable Tube Range: 2” Tube OD to 6” Tube OD
  • Weldable Nominal Pipe Range: 2” Nominal Pipe to 5” Nominal Pipe.
  • 3-Piece Collet Design for Precision Self-Centering of Tube or Pipe.
  • Operator Flexibility: Flip-Top and View Lens aid Fit-Up, Alignment & Inspection.
  • Ergonomically Perfect with 7 Function, Push Button Fingertip Control Built into the Weldhead.
  • Advanced Design includes Jaw Style Clamping, 360° Head Rotation and 90° Tilt Action. Rugged Machined Aluminum Handles Eliminates Handling of Weldhead Body.
  • Standard cable lengths of 25ft (7.6m).


  • Popular Accessory:
  • DiamondBack™ Benchmount Kit (P/N 005-0680)
  • 25 ft (7.6m) Extension Cable (P/N 005-0635)
  • 50 ft (15.2m) Extension Cable (P/N 005-0635-50)

  • Special Tooling
  • Weld fitting collets, mandrels and special tooling available.
  • Collets and Tungsten part numbers: See price book.
  • Locating Mandrels part numbers:
    See price book or call customer service.

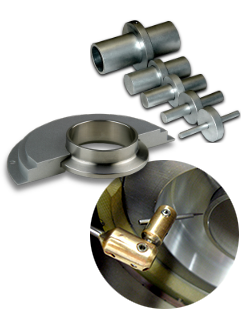

Collets, Locating Mandrels and Tungsten
Collets, Locating Mandrels and Tungsten

Collets, Locating Mandrels and Tungsten.
See Catalog for Tungsten Layout Configurations.

Owners Manuals - References


Cooling Requirements

  • DiamondBack™ doesn’t require CobraCooler®

Related Products

Portable GTAW Orbital
Power Supply / Controller
Portable GTAW
Orbital Tube Welder
Collets & Locating Mandrels
Tungsten and Collet PNs
All part numbers in price list
Layout Configurations
All part numbers in price list
