CobraTurn Digital Turntable

CobraTurn™ - Digital Turntable

Model: 127-006

Price: $2054.00 CobraTurn - Digital Turntable

Description

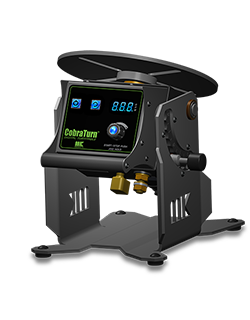

MK Products introduces the new CobraTurn™ Digital Turntable, designed for durability and performance with all welding processes. Utilized on small to large weld assemblies, the CobraTurn’s™ ability to rotate welding jobs makes it ideal for all applications up to the rated load capacities.

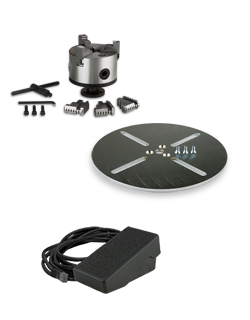

Note: CobraTurn™ shown with optional 10” tabletop.

How to Buy

Features

Simple illuminated control panel, with digital display.
Power (On / Off) and Rotation direction (CW / CCW) push button switches.
Linear single speed control knob, with center, push button start, stop or jog functions.
Gas ID purge through the center shaft.
High frequency interference protection.
Simple push knob to adjust table angle.
Grab handle for easy tilting and transporting.
Standard On/ Off foot switch provided, or an optional variable foot switch may be purchased.

Heavy-duty, compact, open frame design.
Can be easily bolted to any flat surface.
Gas fitting and grounding lug accept common gas hose and ground terminals used in the welding industry.
Steel frame and control panel, powder coated grey.
Lightweight, anodized aluminum gear housing.
Heavy-duty steel cut gears.
Spring loaded tapered pin lock mechanism to adjust table angle.
9 table angle locking positions from 0-90 degrees. Custom angle lock plates may be purchased.

Specifications

Balanced Load Capacity	Optional Turntable Diameter	Degrees Tilt	Speed Range R.P.M.
300 lb*	10"	0° ~ 90°	0.3 ~ 10
Ground Capacity AMPS	Input Voltage	Shipping Weight	Transmission
400A 60% Duty Cycle	120VAC 50/60 Hz	38 lbs	Gear
