Prince XL Spool Gun

Prince® XL Spool Gun


  • Models:             319-725, 319-750
  • Lengths:           25 ft and 50 ft lengths (7.6 m and 15.2 m)

Price: Prince XL Spool Gun - Standard 25 ft

Description

The most versatile pistol grip welding gun in the world, the Prince® XL spool gun provides 1 or 2 lb wire spool flexibility and a pistol grip design weighing less than 3 lbs. Connect the Prince® XL spool gun to any CV or CC power supply using the WC-1 Control or one of our simple interfaces to most any manufacturer’s power supply.

FEATURES

  • EZ-Lock® 360° rotating barrels in 6”,12”, and 18”, straight or curved. Uses Python® gun consumables and 1 or 2 lb spools.
  • Can be easily converted to a push pull gun for use with a 12” spool in the Cobramatic® cabinet.
  • 3¾ turn potentiometer provides easy control over a wide range of welding conditions.
  • Wire feed speed 900 IPM

  • Wire Type and Diameter:
    Solid and Hard wire .030” - .045” (0.8 mm - 1.1 mm)
    Aluminum and Cored wire: .030” - 1/16” (0.8 mm - 1.6 mm)
  • Snake Skin (Standard)
    931-0122 25ft, 931-0123 50ft
Duty Cycle 100%
Rated Output
Rated Output

Rated Output determined by the gun having an Air Cooled (A/C) barrel.

Prince XL Spool Gun A/C is 225 Amps

Options

  • Optional Ultra Flex power cable offers more durability and less strain when welding. (Part Numbers below)

  • Can use the Flex Barrel for hard to reach welds

  • Capable of Aluminum Welding as well as Hard Wire Welding (Steel, stainless steel and flux core steel wires)

  • Spool Gun Control Cable Extension 25 ft Kit, (005-0660)

Part Numbers

Length Part Number Length Part Number
25 ft (7.6 m)
319-725
50 ft (15.2 m)
319-750

Owners Manuals - References

Owners MANUAL CATALOG Page SALES Sheet Product IMAGE

Consumables

Barrel Liners: Aluminum

Teflon
Heavy Duty Teflon
Flex Barrels
For P/Ns Read More

Barrel Liners: Hard Wire Spiral Steel Liner
615-0343
615-0258
615-0259

Hard Wire - Flex Barrel Spiral Steel Liner
(Prince XL, Prince XL SG)
615-0353-12, 615-0353-18
615-0353-24, 615-0353-36

Read More

Drive Rolls

Additional Enhancements For Aluminum Capabilities

Drive Roll Kits:

  • Knurled (Standard)
  • Insulated Grooved (Option)
  • Insulated Knurled (Option)

  • Drive roll installation / removal tool (931-0100)

For P/Ns Read More

Contact Tips for Hard Wire

Steel, Stainless and
Flux Core Steel wire


3/8” Contact Tips
Python LX XL MAX MXmax

.030”(0.8 mm) 621-0396-25
.035”(0.9 mm) 621-0397-25
.045”(1.1 mm) 621-0398-25

Read More

Cups and Tips Connectivity - Extend Your Reach and Save Barrel Tip Threads

Not only can tip extenders extend the reach of your gun, but they also protect the threaded end of your barrel from damage. Some extenders are stackable and some are not – see below to determine.

Barrel Tip Extender Contact Tip Gas Cup
Barrels
Barrels
Python/LX/Prince XL
AC
Tip Extenders
P/N 621-0424
NON stackable
Contact Tips
3/8 inch diameter

Gas Cups

Finned Copper A/C

Gun Lead Assembly Components - Spool GUN

Length Gas Hose Control Cable Power Cable Power Cable
Ultra Flex
25 ft (7.6 m)
50 ft (15.2 m)
552-0244-25
552-0244-50
005-0269
005-0272
843-0484
843-0485
843-0707-25
843-0707-50

Spool Gun Adapter Selectors

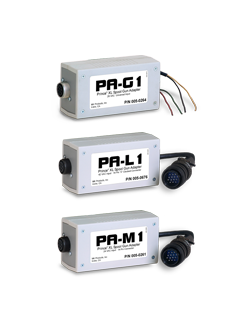

  • Spool Gun Adapters:
  • 005-0264 (Generic, 24VAC)
    All Source

  • 005-0676 (Lincoln, 42VAC)
    14-Pin C/D Trigger

  • 005-0261 (Miller, 24VAC)
    14-Pin A/B Trigger

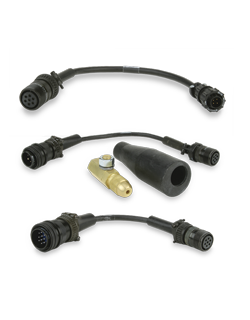

  • Spool Gun Adapter Cables:
  • 005-0617
    Panasonic Gunslinger 260

  • 005-0206
    ESAB MigMaster 250

  • 005-0689
    ThermalArc Fabricator
  • Spool Gun Adapter
    Control:
  • 001-3066
    MK200 Contactor Box
  • Spool Gun Adapter
    Control:

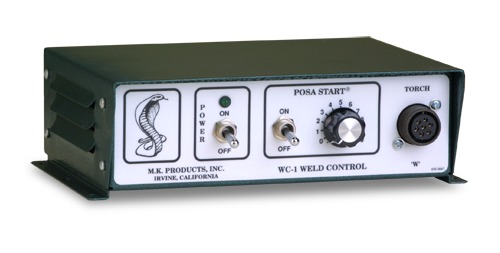

  • 001-3062
    WC-1 Spool Gun Control

Related Products

Cobramatic Wire Feeder
Flex Barrels
Curved Cups and Tips
Cups, Tips, Barrels, Liners,
